The Trijicon 1-6×24 VCOG™ (Variable Combat Optical Gunsight) is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing the VCOG is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application the VCOG utilizes a single AA battery commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided) it boasts a considerable battery life of 700 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).

Magnification: 1-6x
Objective Size (mm): 24
Bullet Drop Compensator: Yes
Weight (oz): 23.2 (w/o mount or battery)
Illumination Source: LED
Reticle Pattern: Horseshoe Dot / Crosshair
Day Reticle Color: Red
Night Reticle Color: Red
Calibration: .308 / 175 grain
Bindon Aiming Concept: Yes
Eye Relief (in): 4 in. Constant
Exit Pupil (mm): 0.41 – 0.15 in.
Field of View (Degrees): 18.0 – 3.0
Field of View @ 100 yards (ft): 95 – 15.9
Adjustment @ 100 yards (clicks/in): 1 click @ 100m = 1/2 in.
Mount Comes With: TA51
Housing Material: Forged Aluminum
Batteries: 1 AA Alkaline or Lithium Battery
Battery Life: 715 hours continuous use at brightness setting 4 of 6
Dimensions: 10.05 x 2.51 x 2.73 in.
Focal Plane: First
Adjustment Range: Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 35 MOA

Trijicon

Filter

Availability

Category

Price

Manufacturer

Caliber / Gauge

Action

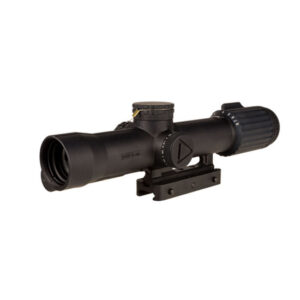

TRIJICON VCOG 1-8X28 SCOPE RED MOA CROSSHAIR
